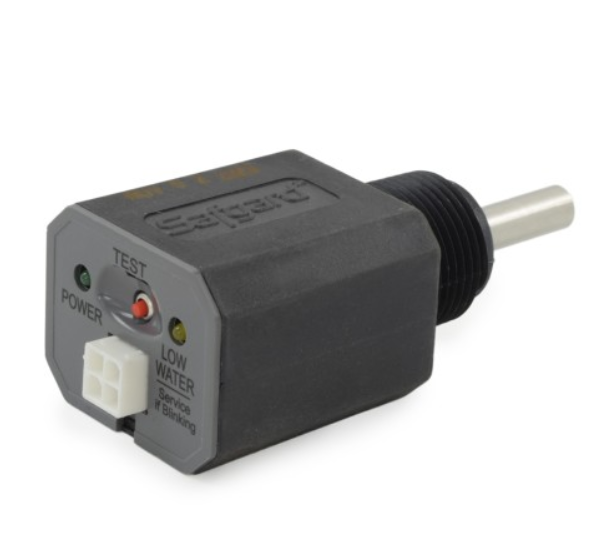

Safgard 1100, Low Water Cut-Off w/ Auto Reset & Test Button, Gas, 24V

Hydrolevel Safgard 1100 is a compact 24V low water cut-off (LWCO) w/ auto reset, designed to immediately interrupt power in a low water condition. Automatically restarts burner when water level return to normal. Features a test button for checking control functionality without lowering the water level or removing the probe. Includes labeled wire harness.

• McDonnell & Miller: RB-24, RB-24E
• Taco: LTR024

• Includes labeled wire harness for easy connection
• Test button for easy diagnostics without lowering the water level or removing the probe
• Auto reset mode
• Power, low water, and service-needed LED indicators
• Standard 4-pin rectangular Molex connector (to LWCO)
• Compact size and heavy-duty construction
• Suitable for wiring to 24VAC transformer, Honeywell R8285 control center (or equivalent) or Honeywell L8148E / L8124E aquastats

• System Type: Hot Water Gas Boilers
• Reset: Automatic
• Connection: 3/4″ NPT
• Electrical Specs: 24V, 60 Hz, 1 VA (Power Consumption); 5 A (Max Load), SPST (Relay Type), NEMA 1 Enclosure
• Switching Capacity: 50 VA
• Max Pressure: 160 psi
• Max Water Temperature: 250°F
• Max Ambient Temperature: 170°F
