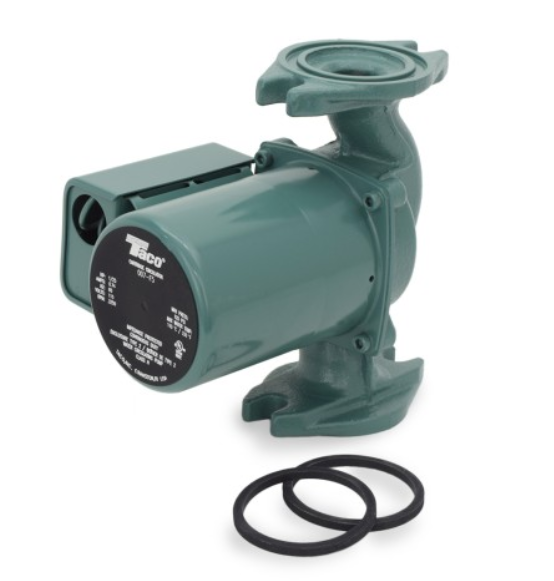

007 Circulator Pump, 1/25 HP, 115V

Taco 007-F5-7IFC Circulator Pump with IFC (Integral Flow Check) is designed to simplify piping, reduce installation costs and improve system performance. With an IFC (Integral Flow Check) inside the Taco 007-F5-7IFC model pump, the need for a separate in-line flow check is eliminated. This feature reduces a pressure drop and increases flow performance vs. in-line flow checks. Both the IFC and the cartridge are easily accessed for removal and service.

• Hydronic Heating/Cooling
• Radiant Heating
• Zoning with Pumps
• Hydro-Air Fan Coils
• And others

• Grundfos UP15-42F/R, UPS15-58FC spd 2

• Flow Range: 0 – 17 GPM;
• Head Range: 0 – 8.5 Feet;
• Minimum Fluid Temperature: 40˚F (4˚C);
• Maximum Fluid Temperature: 240°F (115˚C);
• Maximum Working Pressure: 125 psi;
• Connection Sizes: 3/4″, 1″, 1-1/4″, 1-1/2″ Flanged;
• Voltage: 115V;
• Hertz: 60Hz;
• Phase: 1;
• Amps: 0.71A;
• HP: 1/25HP;
